PRODUCTS

Products List

Pressure Transmitter

ST 700 Pressure Transmitter (Economy Tier)

  1. 1. Accuracy of up to 0.05%
  2. 2. Stability of 0.02% per year for five years
  3. 3. Modularity with field-replaceable units
  4. 4. Onboard pressure and temperature compensation
  5. 5. Alphanumeric display capability
  6. 6. External zero, span and configuration capability
  7. 7. 100ms response time
  8. 8. Polarity-insensitive electrical connections

ST 800 Pressure Transmitter (Performance Tier)

  1. 1. Accuracy of up to 0.025%
  2. 2. Stability of 0.01% per year
  3. 3. Onboard pressure and temperature compensation
  4. 4. Modularity with field-replaceable units
  5. 5. Unequalled display capabilities
  6. 6. External zero, span and configuration capabilities
  7. 7. 90ms response time
  8. 8. Polarity-insensitive electrical connections
  9. 9. Lifetime 15-year warranty
  10. 10. Unique integration capabilities with Experion® systems
  11. 11. Intuitive human machine interface (HMI)

Temperature Transmitter

Smartline Temperature Transmitter (STT650, STT750 and STT850)

  1. 1. Onboard ambient temperature and cold junction compensation
  2. 2. Ability to work with both single and dual sensors
  3. 3. Simple and easy configuration
  4. 4. Comprehensive onboard diagnostic capabilities for the sensor and the transmitters

STT 3000 Smart Temperature (STT170, STT250, STT350)

  1. 1. STT170: temperature monitoring application
  2. 2. STT250: a broad range of control and safety applications
  3. 3. STT350: offer critical control and high accuracy involving fiscal metering

Level Transmitter

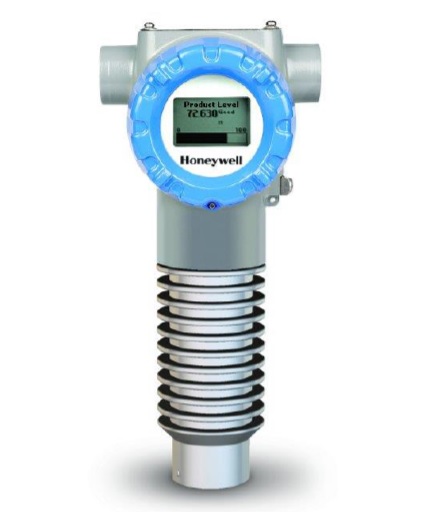

SLG700 Smartline Guided Wave Radar Level Transmitter

  1. 1. Accuracy : ±3mm or 0.03% of measured distance
  2. 2. Repeatability : ±1mm
  3. 3. Pressure range : -1 bar to 400 bar (-14 psi to 5801 psi)
  4. 4. Temperature range: -60 to 450C (-76 F to 842 F)
  5. 5. Full scope of process connections:
    • Flanges starting from DN40 and 1-1/2 inch
    • NPT thread starting from 3/4 inch
  6. 6. Wetted materials for corrosive environments : Alloy
  7. 7. C-276 and SS316
  8. 8. Resolution : 1mm
  9. 9. 2-wire, 4-20mA loop power
  10. 10. HART, Foundation Fieldbus output options
  11. 11. Transmitter configuration write protection
  12. 12. Unequalled local display capabilities
  13. 13. Comprehensive on-board diagnostic capabilities
  14. 14. Full compliance to SIL 2/3 requirements as a standard

Wireless Transmitter

HoneyWell Wireless Transmitter

  1. 1. Provide highly accurate pressure, analog input, valve position, digital input measurement or digital output
  2. 2. Transmit measured value wirelessly using 2.4 GHz ISM band and ISA100 Wireless open protocol
  3. 3. Ability to obtain data from remote and hazardous measurement locations

Versatilis Configurator

Honeywell Versatilis Configurator

  1. 1. Intrinsically safe, certified for hazardous location use
  2. 2. State-of-the-art intrinsically safe tablet, contemporary smart App for configuration and diagnostics
  3. 3. Safe and easy operations as devices can be securely communicated with from a distance
  4. 4. Single solution to communicate with HART, Modbus*, DE and Wireless devices
  5. 5. Advanced Instrument Asset Management features such as Offline Configurations, History
  6. 6. Pre-loaded with required software and all registered HART DD files
  7. 7. Open platform for other secure productivity and mobility applications
  8. 8. Simple, easy and free upgrades to new DD files as a user function
  9. 9. Commercial off-the-shelf batteries for the communication interface
  10. 10. Convenient and bundled accessories

Honeywell Versatilis Transmitter

  1. 1. Its inherently low-power compact design coupled with quick and easy installation
  2. 2. Helps manufacturers to deploy them at scale with the lowest CAPEX and negligible OPEX.
  3. 3. These sensors are designed to monitor and predict the health of rotating equipment like motors, pumps, blowers, fans, compressors, and gearboxes.
  4. 4. Deployed to remotely monitor the position of manual valves, the health of steam traps, and the surface temperature of static process equipment.
  5. 5. Can also be deployed to monitor environmental conditions in life science facilities.

Versaflow Flowmeter

Coriolis Mass Flowmeter

Benefits: Safety, Wide range of flow applications, Reduced maintenance cost and worry, Improved performance, Reduced maintenance time & cost.

Ultrasonic clamp-on Flowmeter

Benefits: Reduced installed cost and improved performance, low cost to service and maintain.

Vortex Flowmeter

Benefits: Reduced installation cost and improved performance, rugged, long- lasting design for the toughest applications, Easy to install and maintain, Multiple parameter monitoring.

Electromagnetic Flowmeter

Benefits: Proven technology, Expanded application capabilities, Wide range of process conditions, Easy to install and operate, Sizes to fit your requirements, resistant to acids and alkalis.

EATON MTL Gas Analyzer and System

GIR6000 for Landfill & Biogas

G1010 to trace percentage levels

K1550 - Hydrogen, Helium, Argon and Xenon Gas Analyser (Panel Mount)

K1650 - Hydrogen Purity Monitor for Power Station Alternator and Turbines Purge (Panel Mount)

K6050/KG6050 - battery operated portable analyser in robust IP67 enclosure

Industrial Ethernet

Industrial Ethernet Switch (Unmanaged/ Managed/ Ring)

  1. 1. Heavy industrial
  2. 2. Standard industrial
  3. 3. Light industrial

Industrial Ethernet Media Converter

  1. 1. High Performance and value
  2. 2. UL/CSA, CE, Hazardous location (Zone 2)
  3. 3. Ultra-reliable 1,000,000+ hours MTBF
  4. 4. Wide temperature range
  5. 5. Long haul fiber transceivers up to 120km

Industrial Ethernet Modbus Gateway

  1. 1. Connect serial devices to an Ethernet network
  2. 2. Supports the Modbus TCP/IP open standard
  3. 3. Connects to Modbus RTU and ASCII serial devices
  4. 4. Supports many other protocols - see manual
  5. 5. Compatible with all Sixnet serial ports
  6. 6. The ideal bridge for your legacy systems
  7. 7. Super easy to setup and use

Power Over Ethernet

Power Over Ethernet (POE)/Splitter

  • Pass Power & Data to your Ethernet Field Devices over the same Cable.
  • Simplify System Wiring, Reduce Maintenance Time, Save Money
  • Fully IEEE 802.3af compliant PSE (Power Sourcing Equipment) operation
  • Model 1 directly runs off of your existing 24 VDC and powers 1 PoE (48 VDC) port
  • Model 2 saves you space and money by powering
  • 2 PoE (48 VDC) ports, Industrial rated for -40 to 75°C operation

M2M Cellular Router

M2M Cellular Router

  • Offer secure and reliable remote connectivity to deployed assets that utilize cellular carrier networks.
  • Ideal for harsh environments
  • Provide easy wireless communication between SCADA servers, RTUs, PLCs, remote I/O and other Ethernet and serial connected devices such as security cameras or industrial sensors.

Sixnet Industrial RTU

Sixnet Industrial RTU

  • Built-in data logging
  • Non-proprietary Linux® OS supports custom programming
  • Communicates with Modbus, Modbus TCP/UDP, DNP3, SNMP, IEC60870-5 and Sixnet UDR protocols
  • Wide -40° to 70°C operating temperature range
  • All models UL Class 1, Division 2 Listed for hazardous locations

Unmanaged/Managed Ethernet Switch

Unmanaged/Managed Ethernet Switch

Wi-Fi Radio

Wi-Fi Radio

  • IEEE 802.11n allows to utilize three antennas
  • Multiple-In, Multiple-Out (MIMO) for increased data throughput
  • Provide 802.11a/b/g backward capabilities

SER Serial Converter

SER Serial Converter

  • Provide signal conversion, isolation, or rebroadcast functions
